Large-Scale SMT Production Line 10-Head Pick and Place for PCB Assembly in Electronics Industry by Charmhigh

Charmhigh complete on-line SMT PCB assembly line with 10-head pick and place machine. Speed 50,000-60,000CPH.

Designed for electronics manufacturers to achieve high-speed, automated production.

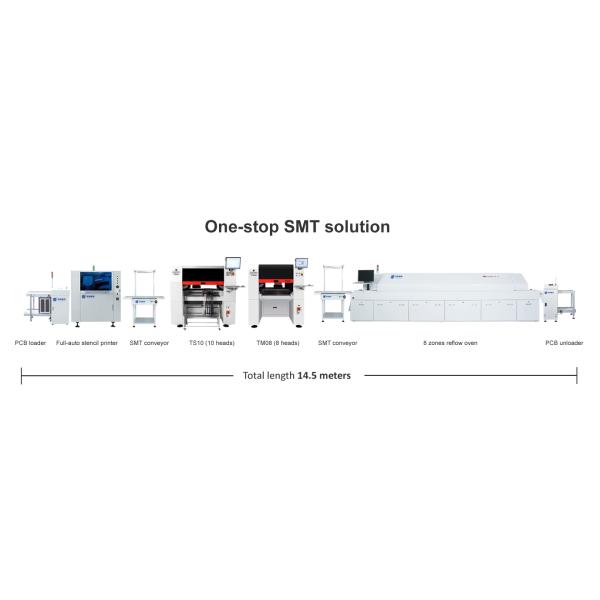

PCB assembly line plan:

1.PCB loader

2.Full automatic stencil printer

3.Conveyor

4.TS10 pick and place machine

5.TM08 pick and place machine

6.Conveyor

7.8 temperature zones reflow oven

9.PCB unloader

10.off-line AOI

Two pick and place machines working together, one mounting small components, another mounting big components and IC:

PCB Sample:

Charmhigh's firm packing, safe for sea shipment.

Service & Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory direct supply with guarantee.

We provide online Q/A and troubleshooting support and technical advice service.

We provide one to one after-sale service. Each machine 100% tested well before ship out.

Tech support:

Kimi Liu: Mob/ WhatsApp: +86 135 106 75756

E-mail: kimi@charmhigh-tech.com

Find us on YouTube: www.youtube.com/kimiLiuCharmhigh

If you want to know more information, please contact us by E-mail. We will response you at the first time.

CHARMHIGH TECHNOLOGY LIMITED is a professional SMT pick and place machine and SMT production line equipment maker which founded in 2009. The company is located in the Hunan province Changsha High-tech Development Zone, covering a total area of 3600 square meters. As a professional modern science and technology enterprise capable of both R&D, production and marketing, Charmhigh has been leading the way in SMT technology for more than ten years.
We start up business from CNC router  since 2009, our engineers had plenty experiences on machinery and motion control system, so we added SMT technology into our business since 2012.

Now our 2 heads and 4 heads desktop SMT pick and place machines are for the majority of small and medium SMT manufacturing research & developments organization, LED Lights, Driver Cards or any Similar Types of Manufacturing Facilities. Our 6 heads, 8 heads and 12 heads vertical standard high speed SMT machine is for big volume production factories. We provide one-stop SMT solution to different customers.

By now, the products of our company have been sold to many countries, such as the United States, Canada, United Kingdom, Italy, Germany, Spain, Poland, Australia, Russia etc.

We are very keen to stay up to study with the latest SMT technology, we have confidence to create more quality products. We take after-sales service as the most important thing, please don't hesitate to contact with us if you have any questions or new ideas.
